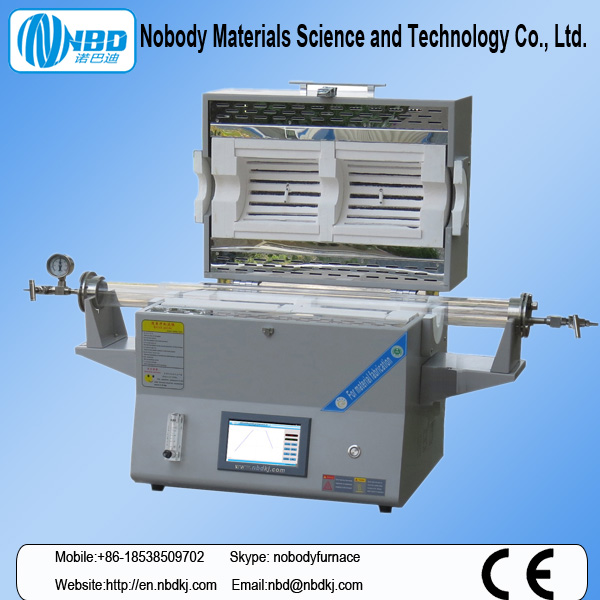

Dual Zone Lab Tube Furnace Application
1200℃ dual zone lab tube furnace is widely used in kinds of CVD experiments
which reaction temperature is round 1150 ℃. It is also used for vacuum
sintering, vacuum sintering under atmosphere protection, nano materials
preparation, battery material preparation and other multiple research
fields.
Dual Zone Lab Tube Furnace Parameter
Product name
Horizontal type dual heating zone tube furnace
Model
NBD-O1200-60IIT
NBD-O1200-80IIT
NBD-O1200-100IIT
Dimensions
600×610×470（mm）
Tube size
Φ60*1000
Φ80*1000
Φ100*1000
Working temperature
1150℃
Length of temperature zone
200mmx2
Heating rate
Advice10℃/min
Heating elements
imported alloy heating wire
Chamber material
Imported alumina fiber Refractory insulation
Controlling accuracy
±1℃
Chamber type
Horizontal type
Control type
7 "color touch-screen control, Intelligent Fuzzy PID Control
Max. temperature
1200℃
Heating temperature zone
Double
Temperature curve
preset 15 curves, every curve can set 30 segments ”time-temperature” curve
Operating interface
English graphical interface, true color touch screen input, interactive mode
Temperature curve record
Real-time monitoring and dynamic real show "Time - temperature curve"
measuring temperature elements
K-type Thermocouple
Protection settings
Broken thermocouple reminder, Over-current protection, Broken thermocouple reminder
Standard
CE appliance
power
AC220V 50Hz/60HZ 2.5KW
weight
45kg
Accessories
One tube, vacuum Flange 1set, a pair of protective gloves, O-ring, furnace hook, manual book.
